85 95 Hardness Electrical Epoxy Potting Compound For Temperature Sensors Controllers

Brand Name : Hanast

Model Number : HN-5508AB

Certification : ROHS SGS

Place of Origin : Guangdong, China

MOQ : 1kg

Price : Negotiable

Payment Terms : T/T

Packaging Details : 25KG/barrel

Name : Epoxy potting compound

Sample : 1kg

Feature : flame retardant insulation, sealing bonding, moisture-proof earthquake resistance

Application : transformers, resistors, filters, temperature sensors, temperature controllers

Color : Black ,transparent

Resistance to the voltage of kv/mm : 20-22

Contact Now

Transformer Epoxy Potting Compound For Temperature Sensors Controllers 85 95 Hardness Fire Retardant High Temp Electronic Potting Ab Glue Two Component Potting Adhesive

Product Description:

HN-5508 epoxy resin at room temperature or low temperature, with low viscosity, long operation time, good fluidity, and easy penetration into the clearance of the product; no bubbles after curing, smooth surface, luster, high hardness

85 95 Hardness Electrical Epoxy Potting Compound For Temperature Sensors Controllers

Technical Parameter

uring builder Epoxy resin 5508 Curing agent 5508
pigment Black / White et al Ruburn / transparent surface
A sticky epoxy resin water r liquid specific
c gravity, g / cm3 1.4-1.5 1.05
Viscosity of 25℃ 4,500—6,000cp s 150—250cp storage
e Period (25℃) Six months x months

processabili

 mixing ratio A: B =5:1 (weight ratio)
Available for a time of 25℃ 2-3H (100g mix)
curing time 25℃ / 6-8H surface stem, 12-16H fully cured or 60-80℃/1.5-2H
After curing 2 Tensile strength of kg/cm 16-18
2 Compressive strength of kg/cm 18-22
Resistance to the voltage of kv/mm 20-22
Surface resistance ofΩ-cm

14

1.2*10
Volume resistance ofΩ-cm

15

1.1*10
contraction percentage% 0.35-0.55
Water absorption rate was 25℃ * 24H <0.03%

The hardness of SHORE A 85-95

distortion

temperature ℃

 130-150
low temperature resistant ℃ -30

Product Feature:

With low viscosity, long operation time, good fluidity, and easy penetration into the clearance of the product; no bubbles after curing, smooth surface, luster, high hardness; curing materials have good acid and alkali resistance, moisture-proof, moisture, and air aging; curing materials have excellent insulation, compressive resistance, and bonding strength.

85 95 Hardness Electrical Epoxy Potting Compound For Temperature Sensors Controllers

Note:
(1)This product is AB agent, according to the label ratio on the product package, and the mixing ratio is weight ratio and non-volume ratio.
(2) AB agent can not be mixed with a round bar without resistance, must be stirred with a flat tool with resistance, it is best to use a small mixer.
(3) This product should be placed in a cool and dry place to avoid light, keep the workshop dust-free, and cover the unused glue in time.

(4) The performance test data is the test result when the humidity is 60% and the temperature is 25℃, for customer reference only.
(5)Epoxy Potting Compound stored in a wet environment will appear crystallization phenomenon, please put in the oven at low temperature hot drying, restore its original state.

Packing specifications
This product is 30 KG per group; including group A 25 KG (barrel) and group B 5 KG (pot)


Product Tags:

95 Hardness Epoxy Potting Compound



electrical Epoxy Potting Compound



85 Hardness electrical potting epoxy


Quality 85 95 Hardness Electrical Epoxy Potting Compound For Temperature Sensors Controllers for sale

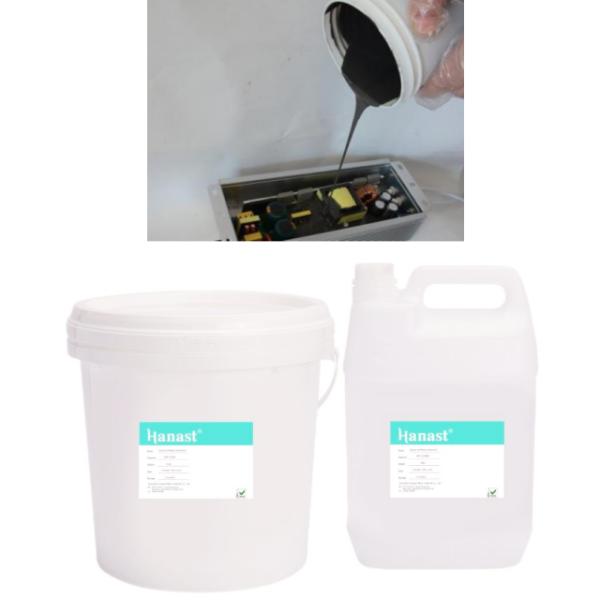

85 95 Hardness Electrical Epoxy Potting Compound For Temperature Sensors Controllers Images
